CZipActionCallback Struct Reference

#include <ZipCallback.h>

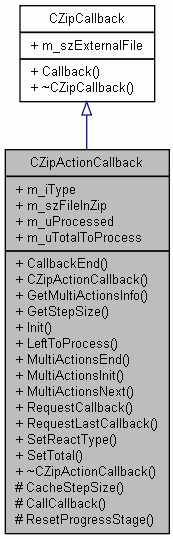

Inheritance diagram for CZipActionCallback:

[legend]

List of all members.

Classes
struct	CMultiActionsInfo
Public Types
enum	CallbackType {   cbNothing = 0x0000, cbAdd = 0x0001, cbAddTmp = 0x0002, cbAddStore = 0x0004,   cbExtract = 0x0008, cbDeleteCnt = 0x0010, cbDelete = 0x0020, cbTest = 0x0040,   cbSave = 0x0080, cbGet = 0x0100, cbModify = 0x0200, cbMoveData = 0x0400,   cbCalculateForMulti = 0x0800, cbMultiAdd = 0x1000 | cbAdd, cbEncryptPrepare = 0x2000, cbEncryptMoveData = 0x4000,   cbEncrypt = 0x8000, cbMultiEncrypt = 0x10000 | cbEncryptMoveData | cbEncrypt, cbNextValue = 0x20000, cbSubActions = cbAddTmp | cbAddStore | cbDeleteCnt | cbMoveData | cbCalculateForMulti | cbEncryptPrepare | cbEncryptMoveData,   cbActions = cbAdd | cbExtract | cbDelete | cbTest | cbSave | cbGet | cbModify | cbEncrypt, cbMultiActions = cbMultiAdd | cbMultiEncrypt, cbAll = cbActions | cbSubActions | cbMultiActions }
Public Member Functions
virtual void	CallbackEnd ()
CMultiActionsInfo *	GetMultiActionsInfo ()
virtual int	GetStepSize ()
virtual void	Init (LPCTSTR lpszFileInZip=NULL, LPCTSTR lpszExternalFile=NULL)
ZIP_SIZE_TYPE	LeftToProcess () const
virtual void	MultiActionsEnd ()
virtual void	MultiActionsInit (ZIP_SIZE_TYPE uTotalFilesToProcess, ZIP_SIZE_TYPE uTotalBytesToProcess, int iReactType)
virtual bool	MultiActionsNext ()
bool	RequestCallback (ZIP_SIZE_TYPE uProgress=1)
bool	RequestLastCallback (ZIP_SIZE_TYPE uProgress=0)
void	SetReactType (int iType)
virtual void	SetTotal (ZIP_SIZE_TYPE uTotalToDo)
Public Attributes
int	m_iType
CZipString	m_szFileInZip
	The name of the file being processed in the archive.
ZIP_SIZE_TYPE	m_uProcessed
	The total amount of data processed so far.
ZIP_SIZE_TYPE	m_uTotalToProcess
Protected Member Functions
void	CacheStepSize ()
virtual bool	CallCallback (ZIP_SIZE_TYPE uProgress)
void	ResetProgressStage ()
Friends
class	CZipArchive
class	CZipCentralDir

---

Detailed Description

When you derive from CZipActionCallback, you can use the new class as a callback object when adding, extracting, deleting, testing files or saving the central directory. You need to override the CZipActionCallback::Callback method. The value of the uProgress parameter in the callback method is the amount of data just processed.

See also:

Progress Notifications: Using Callback Objects

CZipActionCallback::Callback

CZipArchive::SetCallback

---

Member Enumeration Documentation

enum CZipActionCallback::CallbackType

Values used for specifying a callback type in the CZipArchive::SetCallback method. You can assign several values to the same callback object (use the logical OR).

See also:

Progress Notifications: Using Callback Objects

CZipArchive::SetCallback

CZipActionCallback

Enumerator:

cbNothing	Not used. You can use it for your own purposes.
cbAdd	Compressing a file. The callback called when adding a file with one of the CZipArchive::AddNewFile methods.
cbAddTmp	Moving a file from a temporary archive. The callback called while adding a file (only on a segmented archive) when the smartness level contains CZipArchive::zipsmCheckForEff or CZipArchive::zipsmCheckForEffInMem and if the just compressed file is being moved from a temporary place (file or memory) to the archive.
cbAddStore	Storing a file. The callback called while adding a file and if its compressing has proven to be inefficient and it is now being stored (instead of compressed) in the archive. The smartness level must contain CZipArchive::zipsmCheckForEff or CZipArchive::zipsmCheckForEffInMem. The archive can be segmented or not.
cbExtract	Extracting a file. The callback called when extracting a file with one of the CZipArchive::ExtractFile methods.
cbDeleteCnt	Counting data to process before deleting. The callback called before the actual deletion takes place and the map of holes and continuous areas is being created. It is safe to abort the operation (by returning false from the callback method).
cbDelete	Deleting files. The callback called when moving data while deleting file(s) with the CZipArchive::RemoveFile method or one of the CZipArchive::RemoveFiles methods.
cbTest	Testing a file. The callback called when testing a file with the CZipArchive::TestFile method.
cbSave	Saving the central directory. The callback called when saving the central directory with the CZipCentralDir::Write method (usually on close or flush). It is safe to abort the operation on a segmented archive - the saved part of the central directory will be removed from disk.
cbGet	Getting a file from another archive. The callback called when using one of the CZipArchive::GetFromArchive methods.
cbModify	Renaming a file. The callback called when committing changes with the CZipArchive::CommitChanges method, if there is a need to adjust space for the new filenames.
cbMoveData	Moving data. The callback called when moving data inside the archive. It happens while replacing files to adjust space for the new file or while shifting data with the CZipArchive::ShiftData() method.
cbCalculateForMulti	The callback called when counting files and bytes to process when performing multiple actions. When this callback is called, CZipActionCallback::m_uTotalToProcess is not set (because it is unknown and that's why the counting is performed), but it allows to abort the counting process.
cbMultiAdd	The callback called when adding multiple files with one of the CZipArchive::AddNewFiles methods. This callback also registers for cbAdd. See also: Progress Notifications: Using Callback Objects
cbEncryptPrepare	The callback called when preparing existing files for encryption. See also: Encryption Methods: How to Best Protect Your Data
cbEncryptMoveData	The callback called in order to report the progress of adjusting space inside the archive before the actual encryption takes place. See also: Encryption Methods: How to Best Protect Your Data
cbEncrypt	The callback called for every file being encrypted. See also: Encryption Methods: How to Best Protect Your Data
cbMultiEncrypt	The callback called when encrypting existing files in the archive. This callback also registers for cbEncryptMoveData and cbEncrypt. See also: Encryption Methods: How to Best Protect Your Data Progress Notifications: Using Callback Objects
cbNextValue	Reserved. You can declare your own callback types above this value. Do not use the numeric value, but the symbol name - the value may change in the future releases of the library.
cbSubActions	All sub-actions. Represents the sub-actions callbacks - they are called as a part of bigger actions (cbAddTmp | cbAddStore | cbDeleteCnt | cbMoveData | cbCalculateForMulti | cbEncryptPrepare | cbEncryptMoveData).
cbActions	Main callbacks. Represents the main action callbacks (cbAdd | cbExtract | cbDelete | cbTest | cbSave | cbGet | cbModify | cbEncrypt).
cbMultiActions	Multiple action callbacks. Represents the multiple action callbacks.
cbAll	All values. Use this value to use one callback object for all callback types.

---

Member Function Documentation

void CZipActionCallback::CacheStepSize

(

)

[inline, protected]

Caches the value returned from the GetStepSize() method. Called in the Init()method.

virtual void CZipActionCallback::CallbackEnd

(

)

[inline, virtual]

Called after the operation finishes. It is not called in case of an exception, but it is called before throwing CZipException::abortedAction or CZipException::abortedSafely.

virtual bool CZipActionCallback::CallCallback

(

ZIP_SIZE_TYPE

uProgress

)

[inline, protected, virtual]

Calls the Callback() method internally, increases CZipActionCallback::m_uProcessed and lets the CZipActionCallback increase its values, if needed.

Parameters:

uProgress

The amount of data processed.

Returns:

The return value from the Callback() method.

CMultiActionsInfo* CZipActionCallback::GetMultiActionsInfo

(

)

[inline]

Returns the current CMultiActionsInfo object in multiple actions operation or NULL, if the current operation is not one of CZipActionCallback::cbMultiActions actions.

Returns:

The current CMultiActionsInfo object.

See also:

Progress Notifications: Using Callback Objects

virtual int CZipActionCallback::GetStepSize

(

)

[inline, virtual]

Specifies how often the Callback() method is called. The Callback() method is called every n-th callback request, where n is the value returned from the GetStepSize() method. Override this method to adjust the frequency of calling the callback.

Returns:

The value that determines the frequency of calling the Callback() method. By default, it returns 256 for cbSave, cbDeleteCnt, cbCalculateForMulti and cbEncryptPrepare and 1 for other callback types.

Note:

This method is called in the Init() method and the returned value is cached for further processing. This means that when you override this method, even with some time-consuming operations, it will not affect the in-action performance.

Do not use a too low value, because it may increase significantly the time needed to process a large number of files.

virtual void CZipActionCallback::Init	(	LPCTSTR	lpszFileInZip = NULL,
		LPCTSTR	lpszExternalFile = NULL
	)			[inline, virtual]

Called to initialize the callback object. Sets the filenames and resets m_uTotalToProcess and m_uProcessed variables to 0. m_iType variable is already set to the proper value. Called at the beginning of the operation.

Parameters:

	lpszFileInZip	The file that is being processed in the archive.
	lpszExternalFile	The external file being processed. This is set to NULL, if the operation takes place in memory.

ZIP_SIZE_TYPE CZipActionCallback::LeftToProcess

(

)

const [inline]

Returns the amount of data left to process.

Returns:

The amount of data left to process.

virtual void CZipActionCallback::MultiActionsEnd

(

)

[inline, virtual]

Called at the end of the multiple actions operation. Releases multiple actions information (CMultiActionsInfo). Override this method, if you want this information to be persisted after operation finishes. In that case, CMultiActionsInfo will be released on destruction.

See also:

Progress Notifications: Using Callback Objects

virtual void CZipActionCallback::MultiActionsInit	(	ZIP_SIZE_TYPE	uTotalFilesToProcess,
		ZIP_SIZE_TYPE	uTotalBytesToProcess,
		int	iReactType
	)			[inline, virtual]

Called when a multiple actions operation is about to begin. Initializes CMultiActionsInfo object.

Parameters:

	uTotalFilesToProcess	The number of files to process.
	uTotalBytesToProcess	The number of bytes to process.
	iReactType	The type of the callback that will cause increasing of values in CMultiActionsInfo. It can be one of CallbackType values.

See also:

Progress Notifications: Using Callback Objects

GetMultiActionsInfo

Note:

When overriding this method, call the base method from your code.

virtual bool CZipActionCallback::MultiActionsNext

(

)

[inline, virtual]

Called when a next action begins in multiple actions processing. This method calls Callback method with uProgress parameter set to 0.

Returns:

The value returned from the Callback method.

See also:

Progress Notifications: Using Callback Objects

Note:

When overriding this method, call the base method from your code.

bool CZipActionCallback::RequestCallback

(

ZIP_SIZE_TYPE

uProgress = 1

)

[inline]

Called by processing classes when data processing progressed.

Parameters:

uProgress

The amount of data processed.

Returns:

The value returned from Callback, if the method was called; true otherwise.

bool CZipActionCallback::RequestLastCallback

(

ZIP_SIZE_TYPE

uProgress = 0

)

[inline]

Called by processing classes when data processing is finished to allow calling the Callback() method for the remaining amount of processed data (for which the Callback() has not been called). This usually happens, when GetStepSize() does not return 1.

Parameters:

uProgress

The amount of data processed.

Returns:

The value returned from the Callback method, if the method was called; true otherwise.

void CZipActionCallback::ResetProgressStage

(

)

[inline, protected]

Initializes the values that depend on the frequency of calling the Callback() method. Called with every call to the Callback() method.

See also:

GetStepSize

void CZipActionCallback::SetReactType

(

int

iType

)

[inline]

Sets the type of the callback, that will cause the current CMultiActionsInfo object to update its progress.

Parameters:

iType

The type of the callback. It can be one of the CallbackType values.

virtual void CZipActionCallback::SetTotal

(

ZIP_SIZE_TYPE

uTotalToDo

)

[inline, virtual]

Called after calculating the total amount of data to process.

Parameters:

uTotalToDo

Total amount of data to process. The method initializes m_uTotalToProcess with this value.

---

Member Data Documentation

int CZipActionCallback::m_iType

The type of the callback. It is set to one of the CallbackType values when an action begins. It's useful, if you have more than one callback assigned to the same callback object.

CZipString CZipActionCallback::m_szFileInZip

The name of the file being processed in the archive.

ZIP_SIZE_TYPE CZipActionCallback::m_uProcessed

The total amount of data processed so far.

ZIP_SIZE_TYPE CZipActionCallback::m_uTotalToProcess

The total amount of data to process. This value is set when the SetTotal method is called.

Depending on the action it is set then to:

• Adding a file : the size of the external file being added (or if the type of the callback is CZipActionCallback::cbAddTmp, the size of the compressed data: CZipFileHeader::m_uComprSize).
• Extracting a file : the size of the uncompressed data (CZipFileHeader::m_uUncomprSize).
• Testing a file : the same as above.
• Deleting a file : the number of bytes to move - the size of all files to remain above the first file to delete (calculated from offsets in CZipFileHeader::m_uOffset).
• Saving the central directory : the number of files in the archive.

---

The documentation for this struct was generated from the following file:

• ZipCallback.h
